elongating the chassis…maybe it will do land speed? :P (though not with those slicks!)
3D printed mockup of expansion chamber design
3D printed mockup of expansion chamber design
3D printed mockup of expansion chamber design
Rough CAD of exhaust. I tried to keep all diameters and lengths true to the original, because you know, optimized for power right? LOL

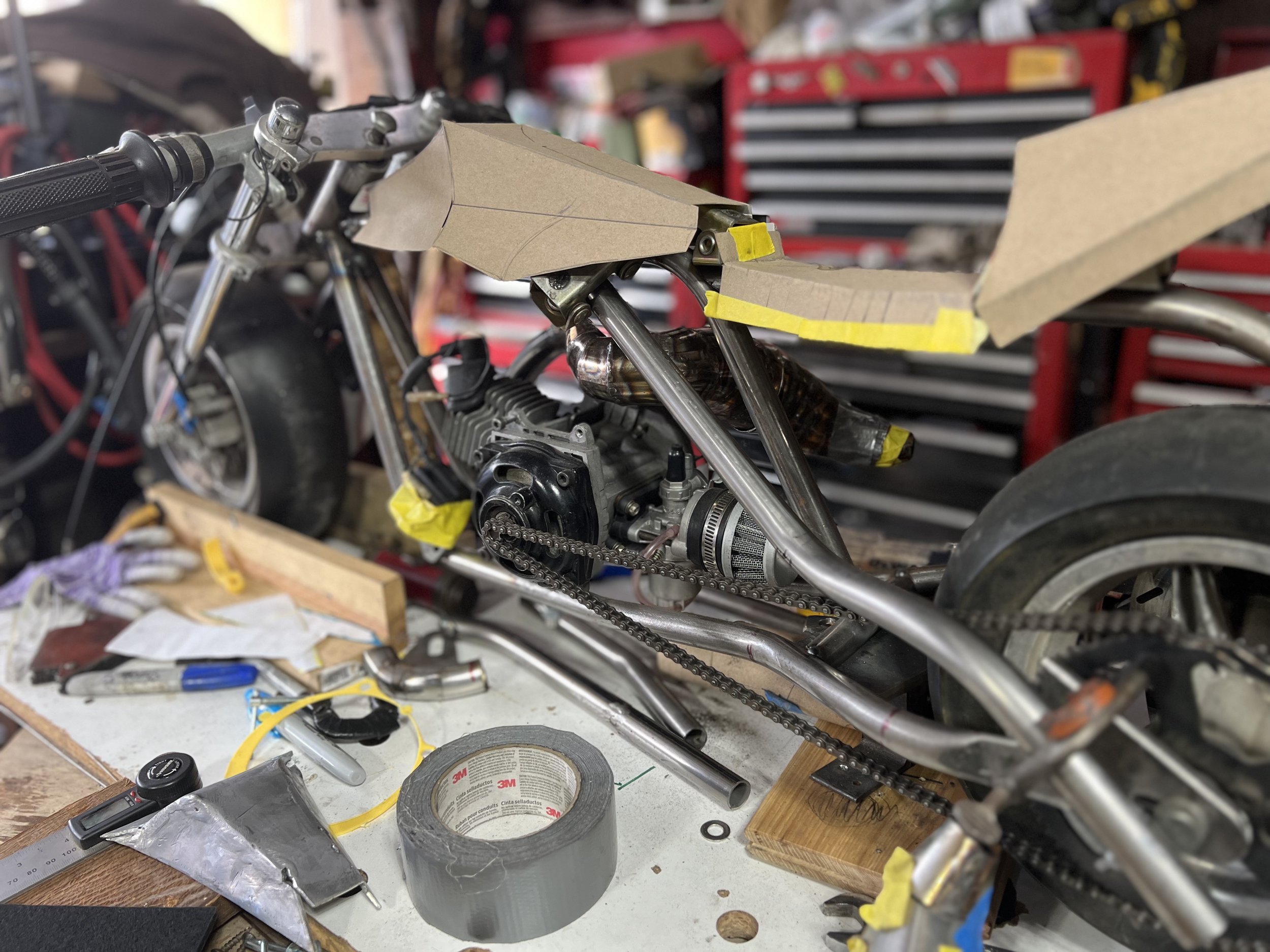

Frame mockup-up
Paper ideas
Aluminum is melts in such a tacky thick way I like to treat it like its clay, so I prefer to leave a degree of hammer marks, bumps and flaws in it while also giving it a full mirror polish - which allows it to bounce light and reflections in unpredictably ways.
3D printed mockup of expansion chamber design
Pie cuts cut individually and hammered into shape
First pie cuts - stainless steel
My bandsaw blade did not love the stainless. I wound up building myself a CNC plasma cutter months after i did the exhaust...SMH
CAD for he fuel cap to 3D print for sand casting model. The design is similar to readily available caps but I needed it about 30% smaller
I thought I was just gonna cut a piece of foam for the cushion but decided it needed some waffling. :)
I hate sewing - correction, i hate sewing machines...what should have taken a few hours of sewing turned into days chasing the problem to get it to work…
If only I had a 3D metal printer! The 3D print is used as the blank for the sand casting mold but not after a lot of post processing to get rid of the layer lines
Welded some of the deeper casting flaws…kept some in also for that hand built look
Failed aluminum cover casting. Back to the melt pile… First time doing this so understanding sprues, gates and venting et al
Made the locking arm from brass bar. hope to modify my furnace in the future to get hot enough to melt brass
CAD for he flywheel cover to 3D print for sand casting model

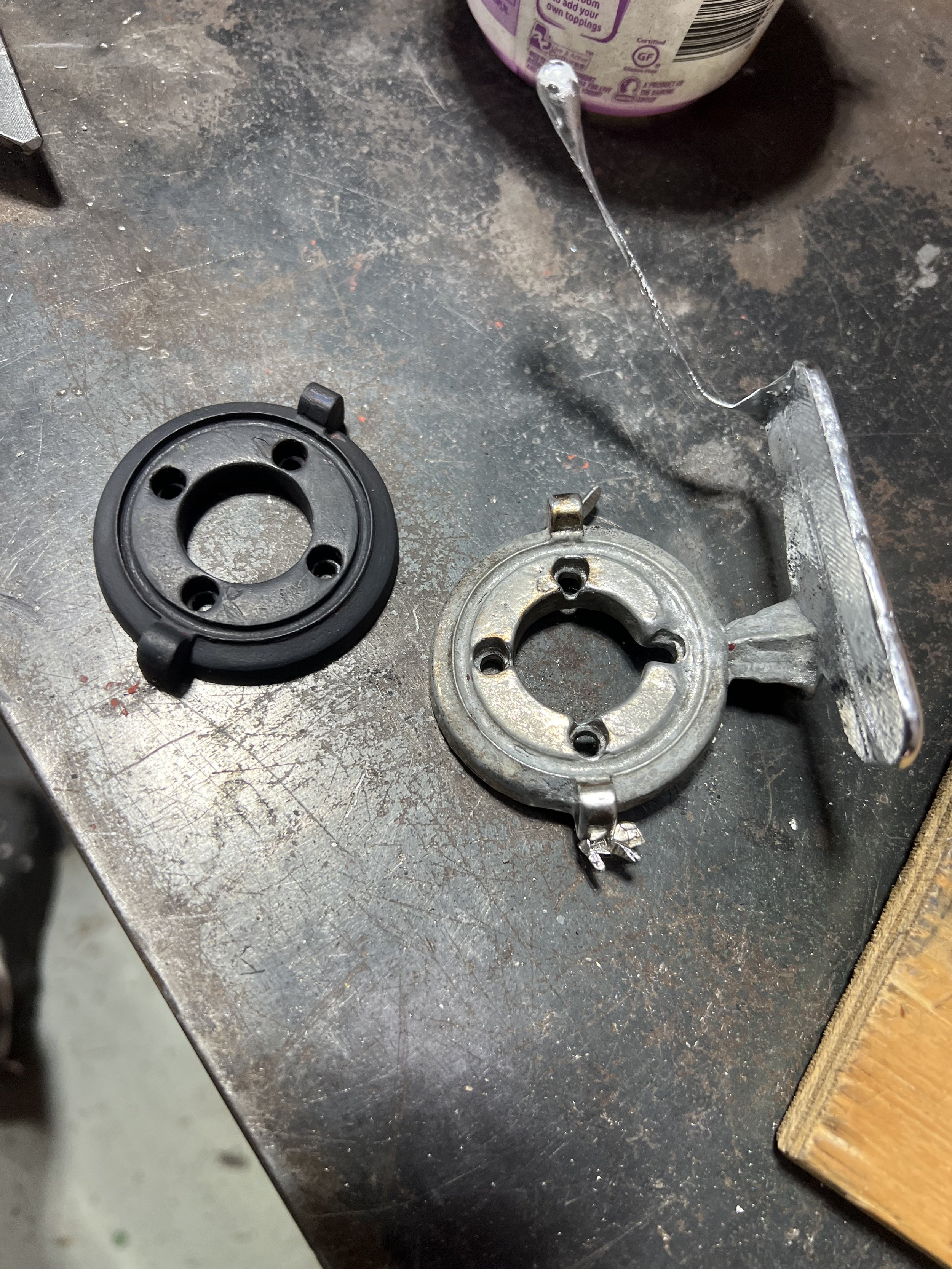

First casting in zinc alloy. Lower melting temp but way denser/heavier than aluminum. First experiment was in a silicone mold. I wound up doing it again in aluminum once I got a few sand molds under my belt.
3D print (left) with lots of post processing to get rid of the layer lines. The better the form the less post you will have to do with the final
Simple rear stand.
Aluminum melts in such a tacky thick way I like to treat it like its clay, so I prefer to leave a degree of hammer marks, bumps and flaws in it while also giving it a full mirror polish - which allows it to bounce light and reflections in unpredictably ways.

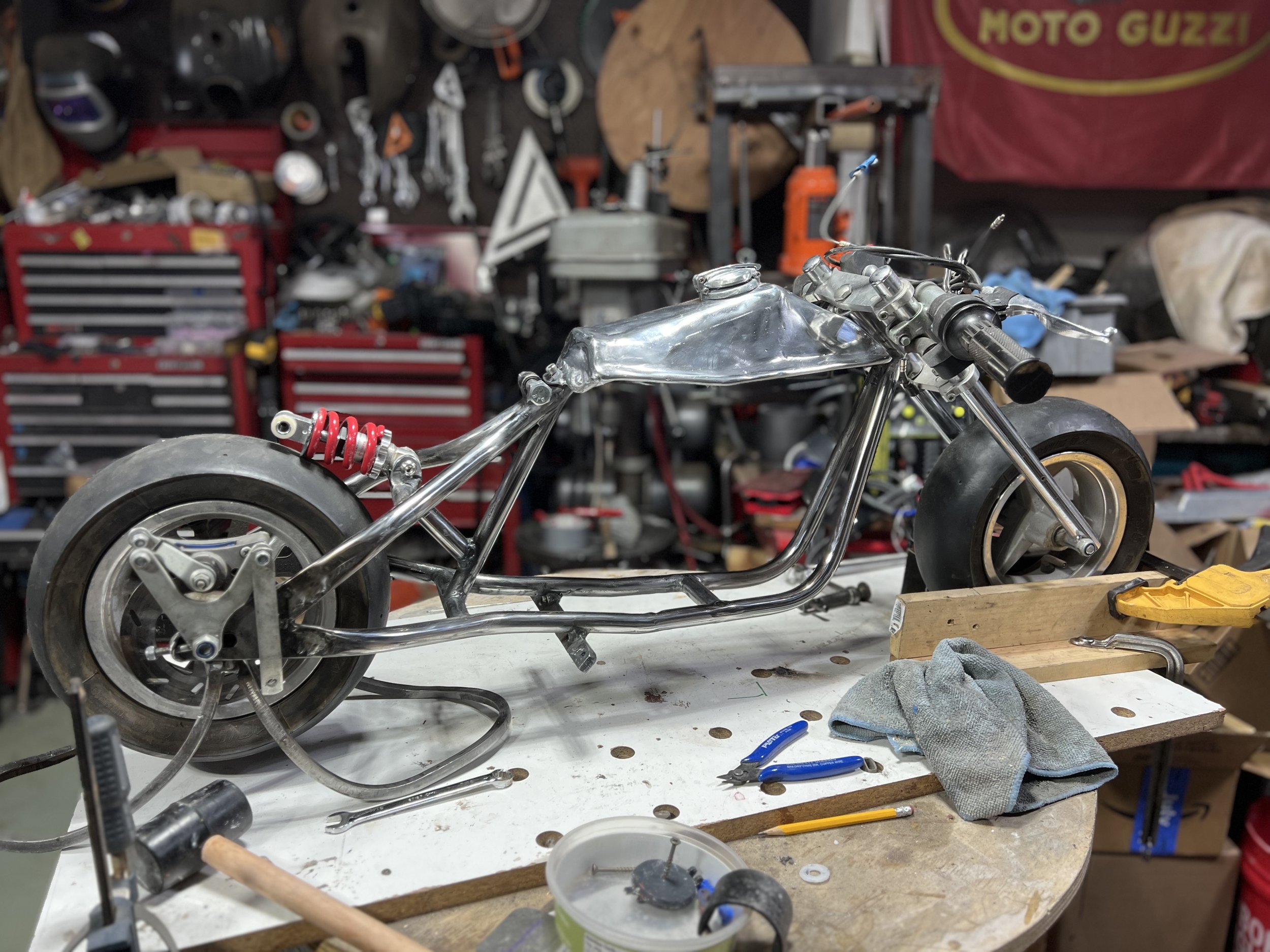

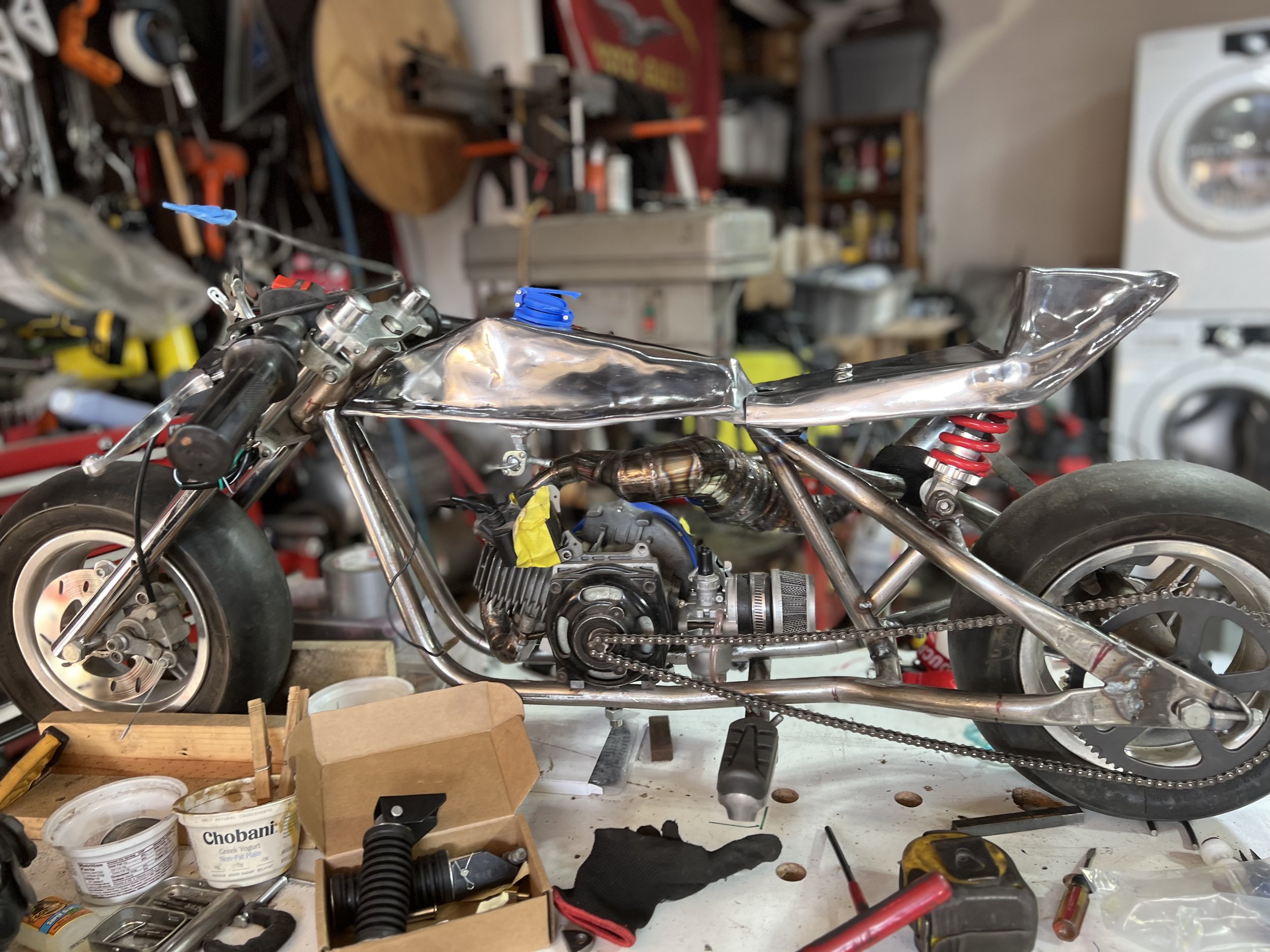

i thought it was almost done….just routing cable and finishing up the grips…but decided it needed one more thing…a small front fairing. Here just using scrap sheet to decide on the form - ultimately remade it with new material
